产品描述
>> 特点

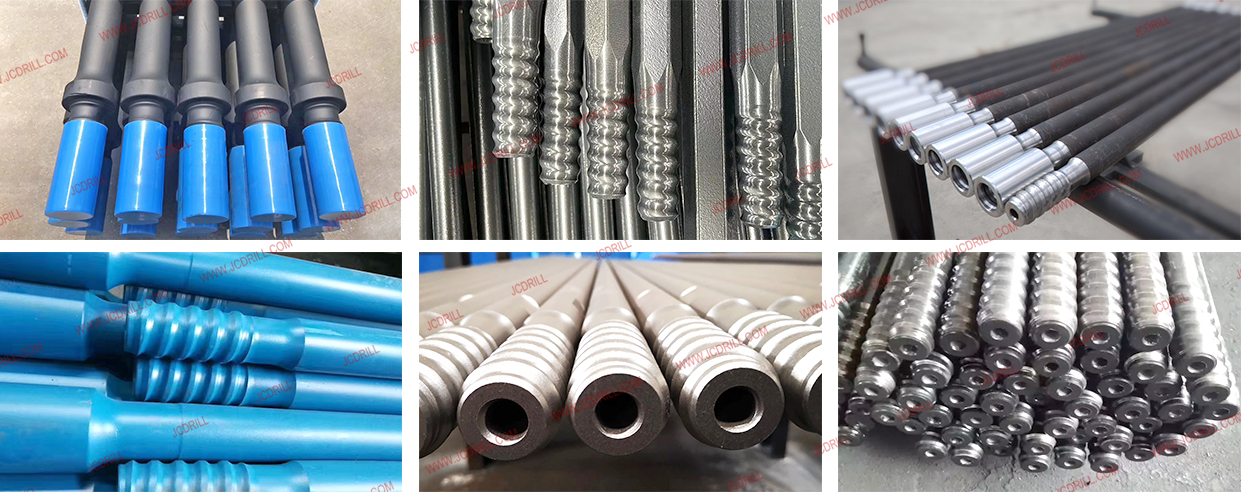

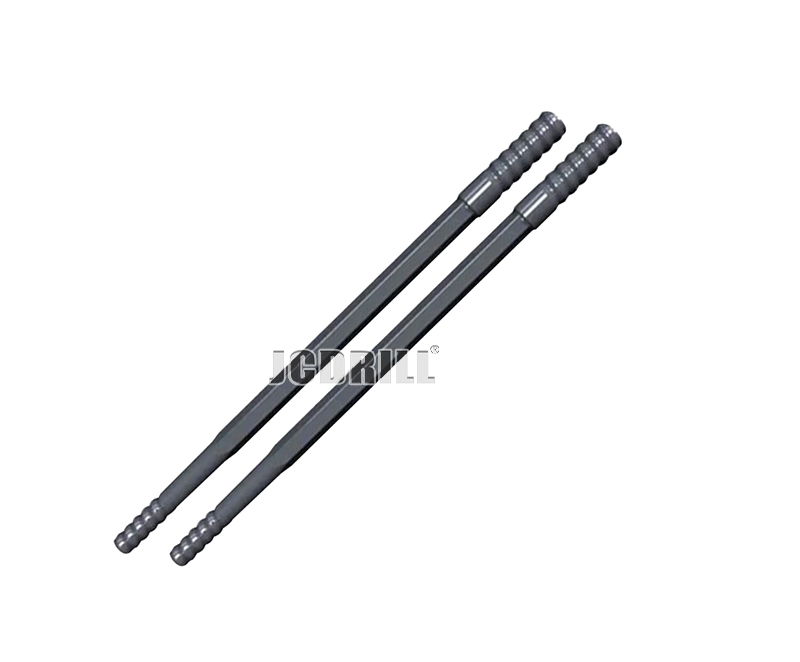

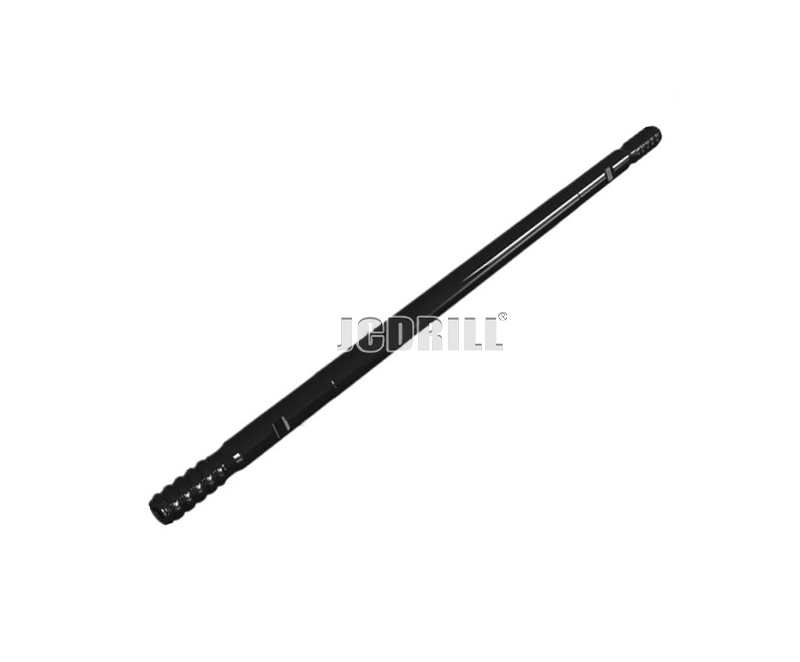

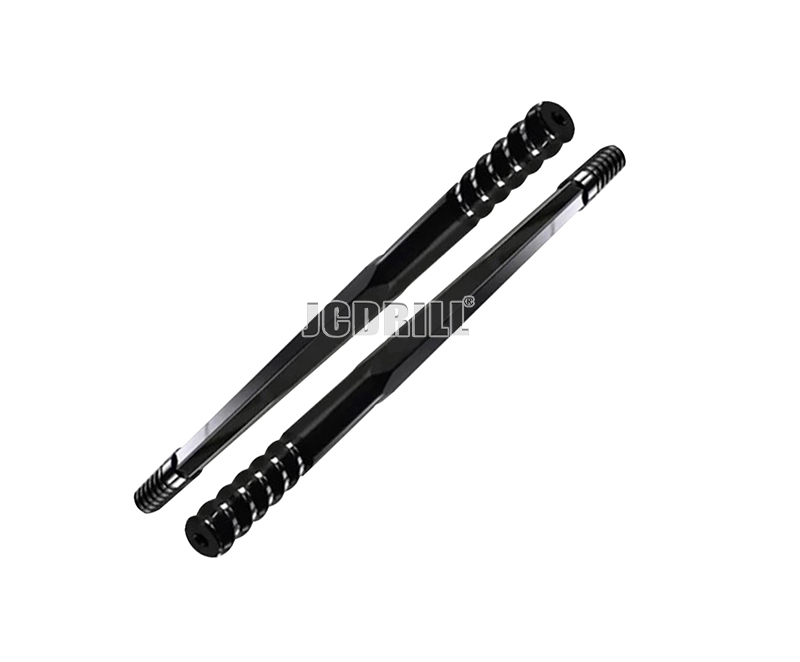

本系列钻杆（涵盖六角钻杆、延伸杆、快速杆、MF杆等全类型）专为应对严苛的钻进工况而设计。我们采用高强度铬钼钢为主体材料，并融合碳化钨等耐磨材料，通过数控铣削与专有热处理工艺精制而成，致力于在复杂地层中实现稳定、高效、长寿命的钻进作业。
卓越的材质与工艺
核心材质：采用高强度铬钼钢，确保钻杆具备高疲劳强度与优异的耐磨性。
先进制造：结合数控铣削与专有热处理工艺，为产品性能提供双重保障。
可靠的机械性能
结构稳固：具有高连接强度与高抗扭能力，有效应对复杂应力。
性能耐久：具备良好的低温韧性与高疲劳强度，保障在多种工况下的长疲劳寿命。
综合性能优异：整体力学性能均衡可靠。
优化的工程设计
高效流体通道：钻具接头内径大，有利于钻井液高效通过，提升排屑效率。
精准制造：尺寸和形状精度高，确保钻具连接顺畅，工作平稳。
灵活的定制服务
可根据客户要求提供颜色标识等服务，便于现场管理与识别。
本产品通过材料、工艺与设计的全方位优化，为矿业勘探、地质钻探等领域的客户提供了一套高效可靠、耐久经济的钻杆解决方案。
>> 规格
| 长度 | 直径 | 重量 | 长度 | 直径 | 重量 | 长度 | 直径 | 重量 | ||||||
| 毫米 | 英寸 | 毫米 | 英寸 | （公斤） | 毫米 | 英寸 | 毫米 | 英寸 | （公斤） | 毫米 | 英寸 | 毫米 | 英寸 | （公斤） |
| R25 | HL38 | T45 | ||||||||||||
| 2100 | 7' | 25 | 1" | 8.6 | 1220 | 4' | 39 | 1.5 | 10.2 | 1830 | 6' | 46 | 1.75 | 21.6 |
| 2400 | 8' | 25 | 1" | 9.6 | 1525 | 5' | 39 | 1.5 | 12.8 | 2435 | 8' | 46 | 1.75 | 28.3 |
| 2600 | 8'8' | 25 | 1" | 1.4 | 1830 | 6' | 39 | 1.5 | 15.3 | 3050 | 10' | 46 | 1.75 | 35.2 |
| 2800 | 9' | 25 | 1" | 11.1 | 2435 | 8' | 39 | 1.5 | 20.4 | 3660 | 12' | 46 | 1.75 | 42.1 |
| 3090 | 10' | 25 | 1" | 12.2 | 3050 | 10' | 39 | 1.5 | 25.5 | 4270 | 14' | 46 | 1.75 | 48.9 |
| 3700 | 12' | 25 | 1" | 14.6 | 3660 | 12' | 39 | 1.5 | 30.9 | 5530 | 18' | 46 | 1.75 | 63 |
| 915 | 3' | 25 | 1" | 3.4 | 3964 | 13' | 39 | 1.5 | 33.2 | 6095 | 20' | 46 | 1.75 | 69.3 |
| 1000 | 3'33'/8' | 25 | 1" | 4 | 4270 | 14' | 39 | 1.5 | 35.7 | 1525 | 5' | 46 | 1.75 | 21.2 |
| 1220 | 4' | 25 | 1" | 4.6 | 4880 | 16' | 39 | 1.5 | 41 | 1830 | 6' | 46 | 1.75 | 24.6 |
| 1525 | 5' | 25 | 1" | 5.8 | 5530 | 18'11/2'' | 39 | 1.5 | 46.3 | 3050 | 10' | 46 | 1.75 | 38.2 |
| 1830 | 6' | 25 | 1" | 7 | 6095 | 20' | 39 | 1.5 | 50.9 | 3660 | 12' | 46 | 1.75 | 45 |
| 2435 | 8' | 25 | 1" | 9.3 | 915 | 3' | 39 | 1.5 | 10.7 | 4270 | 14' | 46 | 1.75 | 51.9 |
| 3050 | 10' | 25 | 1" | 12 | 1220 | 4' | 39 | 1.5 | 13.3 | 5530 | 18' | 46 | 1.75 | 66 |
| 610 | 2' | 25 | 1" | 2.7 | 1525 | 5' | 39 | 1.5 | 15.8 | 6095 | 20' | 46 | 1.75 | 72.3 |
| 1220 | 4' | 25 | 1" | 5.1 | 1830 | 6' | 39 | 1.5 | 18.3 | 3050 | 10' | 52 | 2 | 46.6 |
| R28 | 3050 | 10' | 39 | 1.5 | 28.5 | 3660 | 12' | 52 | 2 | 55.8 | ||||
| 2400 | 7'10" | 28 | 1 1/8 | 12.2 | 3660 | 12' | 39 | 1.5 | 33.6 | 4270 | 14' | 52 | 2 | 63.8 |
| 2750 | 9' | 28 | 1 1/8 | 14.4 | 4270 | 14' | 39 | 1.5 | 38.7 | 5530 | 18' | 52 | 2 | 81.5 |
| 3700 | 12'11/2" | 28 | 1 1/8 | 18.9 | 4880 | 16' | 39 | 1.5 | 43.7 | 6095 | 20' | 52 | 2 | 89.4 |
| 4000 | 13'1/8" | 28 | 1 1/8 | 20.4 | 5530 | 18'11/2'' | 39 | 1.5 | 49.2 | T51 | ||||
| 4310 | 14'11/2" | 28 | 1 1/8 | 22 | 6095 | 20' | 39 | 1.5 | 53.9 | 3050 | 10' | 52 | 2 | 45.3 |
| 4920 | 16'11/2" | 28 | 1 1/8 | 25.3 | 1220 | 4' | 32 | 1.25 | 8.6 | 3660 | 12' | 52 | 2 | 54.1 |
| 2900 | 9'61/8" | 32 | 1 1/4 | 18.8 | 1830 | 6' | 32 | 1.25 | 12.6 | 4270 | 14' | 52 | 2 | 63 |
| 3090 | 10'11/2" | 32 | 1 1/4 | 20 | 2435 | 8' | 32 | 1.25 | 16.6 | 4880 | 16' | 52 | 2 | 71.8 |
| 3700 | 12'11/2" | 32 | 1 1/4 | 24 | 3050 | 10' | 32 | 1.25 | 20.8 | 5530 | 18' | 52 | 2 | 81.2 |
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | 3660 | 12' | 32 | 1.25 | 24.9 | 6095 | 20' | 52 | 2 | 89.4 |
| 3090 | 10'11/2" | 32 | 1 1/4 | 20 | T38 | 1525 | 5' | 52 | 2 | 26.2 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 23.5 | 1220 | 4' | 39 | 1.5 | 10.2 | 1830 | 6' | 52 | 2 | 30.6 |
| 3090 | 10'11/2" | 32 | 1 1/4 | 20 | 1525 | 5' | 39 | 1.5 | 12.8 | 3050 | 10' | 52 | 2 | 48.3 |
| 3700 | 12'11/2" | 32 | 1 1/4 | 24 | 1830 | 6' | 39 | 1.5 | 15.3 | 3660 | 12' | 52 | 2 | 57.1 |
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.9 | 2435 | 8' | 39 | 1.5 | 20.4 | 4270 | 14' | 52 | 2 | 66 |
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | 3050 | 10' | 39 | 1.5 | 25.5 | 4880 | 16' | 52 | 2 | 74.8 |
| 3050 | 10' | 28 | 1 1/8 | 15 | 3660 | 12' | 39 | 1.5 | 30.9 | 5530 | 18' | 52 | 2 | 84.2 |
| 3050 | 10' | 28 | 1 1/8 | 15 | 3965 | 13' | 39 | 1.5 | 33.2 | 6095 | 20' | 52 | 2 | 92.4 |
| R32 | 4270 | 14' | 39 | 1.5 | 35.7 | T60 | ||||||||
| 915 | 3' | 32 | 1.25 | 5.4 | 4880 | 16' | 39 | 1.5 | 41 | 3660 | 12' | 60 | 2.375 | 73.9 |
| 1000 | 3'33/8'' | 32 | 1.25 | 5.9 | 5530 | 18'11/2'' | 39 | 1.5 | 46.3 | 4265 | 14' | 60 | 2.375 | 85.5 |
| 1220 | 4' | 32 | 1.25 | 7.2 | 6095 | 20' | 39 | 1.5 | 50.9 | 6095 | 20' | 60 | 2.375 | 116.6 |
| 1830 | 6' | 32 | 1.25 | 10.8 | 915 | 3' | 39 | 1.5 | 10.7 | 4265 | 14' | 60 | 2.5 | 95 |
| 2435 | 8' | 32 | 1.25 | 14.3 | 1220 | 4' | 39 | 1.5 | 13.3 | 3660 | 12' | 60 | 2.375 | 73.9 |
| 3050 | 10' | 32 | 1.25 | 17.9 | 1525 | 5' | 39 | 1.5 | 15.8 | 4265 | 14' | 60 | 2.375 | 85.5 |
| 3660 | 12' | 32 | 1.25 | 21.5 | 1830 | 6' | 39 | 1.5 | 18.3 | 6095 | 20' | 60 | 2.375 | 116.6 |
| 915 | 3' | 32 | 1.25 | 6.2 | 3050 | 10' | 39 | 1.5 | 28.5 | 1660 | 5'3'' | 87 | 3.5 | 39 |
| 1000 | 4' | 32 | 1.25 | 8 | 3660 | 12' | 39 | 1.5 | 33.6 | 4265 | 14' | 87 | 3.5 | 99 |
| 1220 | 5' | 32 | 1.25 | 9.8 | 4270 | 14' | 39 | 1.5 | 38.7 | 5335 | 17'6'' | 76 | 3 | 124.9 |
| 1830 | 6' | 32 | 1.25 | 11.6 | 4880 | 16' | 39 | 1.5 | 43.7 | 3660 | 12' | 87 | 3.5 | 87.8 |
| 2435 | 8' | 32 | 1.25 | 15.1 | 5530 | 18'11/2'' | 39 | 1.5 | 49.2 | 4265 | 14' | 87 | 3.5 | 99 |
| 3050 | 10' | 32 | 1.25 | 18.7 | 6095 | 20' | 39 | 1.5 | 53.9 | R3212 | ||||
| 3660 | 12' | 32 | 1.25 | 22.3 | 1220 | 4' | 32 | 1.25 | 8.6 | 600 | 2' | 32 | 1.25 | 3.53 |
| 3050 | 10' | 39 | 1.5 | 27 | 1830 | 6' | 32 | 1.25 | 12.6 | 800 | 2'7'' | 32 | 1.25 | 4.7 |
| 3660 | 12' | 39 | 1.5 | 32 | 2435 | 8' | 32 | 1.25 | 16.6 | 900 | 2' | 32 | 1.25 | 5.3 |
| 1220 | 4' | 46 | 1.75 | 10 | 3050 | 10' | 32 | 1.25 | 20.8 | 1000 | 3'3'' | 32 | 1.25 | 5.9 |
| 1525 | 5' | 46 | 1.75 | 12.5 | 3660 | 12' | 32 | 1.25 | 24.9 | 1100 | 3'6'' | 32 | 1.25 | 6.52 |
| 1830 | 6' | 46 | 1.75 | 14.2 | 3050 | 10' | 46 | 1.75 | 25.7 | 1200 | 3'9'' | 32 | 1.25 | 7.1 |
| 3050 | 10' | 46 | 1.75 | 25 | 3660 | 12' | 46 | 1.75 | 30.9 | 600 | 2' | 32 | 1.25 | 4.45 |
| ST58 | 1830 | 6' | 46 | 1.75 | 23.5 | 800 | 2'7'' | 32 | 1.25 | 5.6 | ||||
| 1525 | 5' | 76 | 2.375 | 34 | 3050 | 10' | 46 | 1.75 | 37.2 | 900 | 2' | 32 | 1.25 | 6.17 |
| 1830 | 6' | 76 | 2.375 | 40 | 3660 | 12' | 46 | 1.75 | 44 | 1000 | 3'3'' | 32 | 1.25 | 6.8 |
| 3660 | 12' | 76 | 2.375 | 76.3 | 4270 | 14' | 46 | 1.75 | 50.9 | 1100 | 3'6'' | 32 | 1.25 | 7.4 |
| ST68 | 4880 | 16' | 46 | 1.75 | 57.7 | 1200 | 3'9'' | 32 | 1.25 | 7.9 | ||||
| 1525 | 5' | 87 | 3.4375 | 35.5 | 5530 | 18'11/2'' | 46 | 1.75 | 65 | |||||
| 1830 | 6' | 87 | 3.4375 | 43.8 | 6095 | 20' | 46 | 1.75 | 71.3 | |||||
| 3660 | 12' | 87 | 3.4375 | 80 | ||||||||||
| 6110 | 20' | 87 | 3.4375 | 133 | ||||||||||
