产品描述
>> 特点

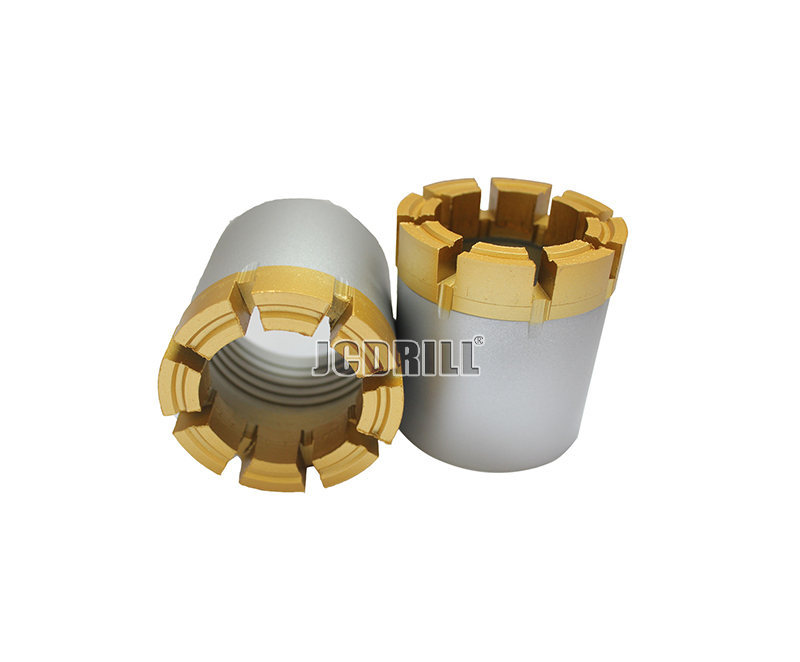

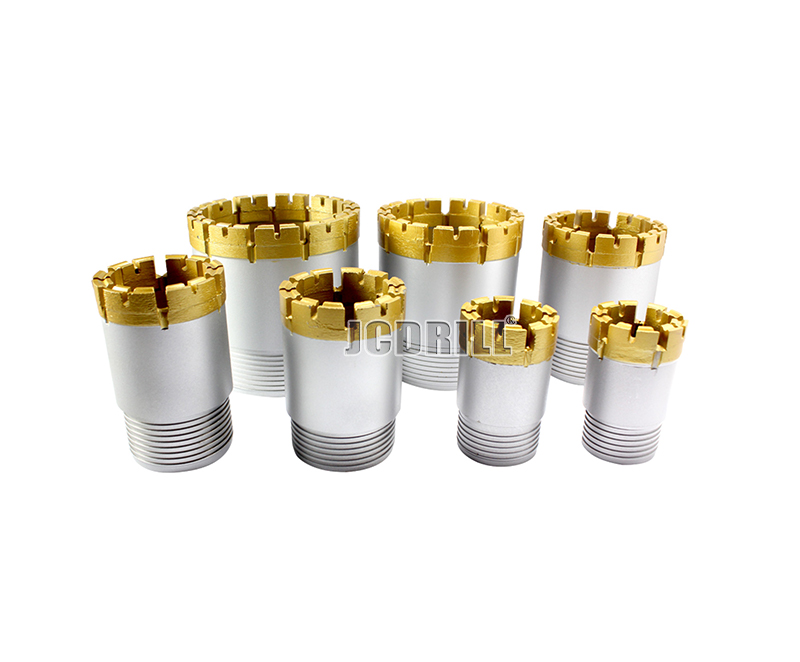

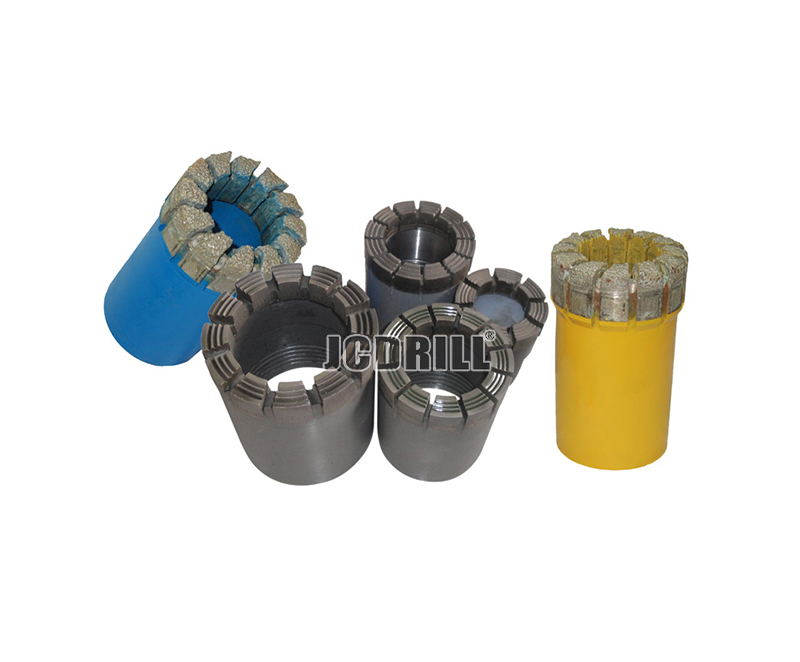

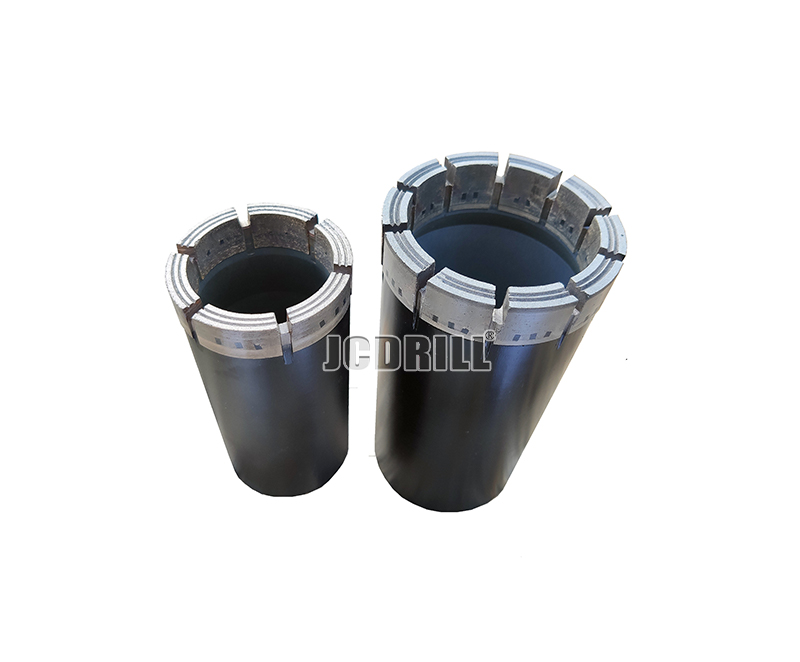

>>浸渍金刚石取心钻头具有钻进速度快、使用寿命长的特点。
>>切削刃数量更多，钻进过程更顺畅。
>>在制造过程中，金刚石不受侵蚀并得到充分利用。
>>浸渍金刚石取心钻头具有多种配置，可满足各种当地工况需求。
>>它还提供最广泛使用的钻头胎体。
>>凭借各种规格，我们的系列胎体范围为您提供了轻松的选择和可靠的基础，以满足您的钻进需求。
>> 规格参数
| 尺寸 | 钻头外径 孔径 | 钻头内径 取心直径 | 扩孔器外径 | |||
| 英寸 | 毫米 | 英寸 | 毫米 | 英寸 | 毫米 | |
| AQ | 1.870/1.880 | 47.50/47.75 | 1.057/1.067 | 26.85/27.10 | 1.885/1.895 | 47.88/48.13 |
| LTK48 | 1.870/1.880 | 47.50/47.75 | 1.384/1.394 | 35.15/35.41 | 1.885/1.895 | 47.88/48.13 |
| BQ | 2.340/2.350 | 59.44/59.69 | 1.428/1.438 | 36.27/36.53 | 2.355/2.365 | 59.82/60.07 |
| BQ3 | 2.340/2.350 | 59.44//59.69 | 1.315/1.325 | 33.40/33.65 | 2.355/2.365 | 59.82/60.07 |
| NQ | 2.960/2.970 | 75.18/75.44 | 1.870/1.880 | 47.50/47.75 | 2.975/2.985 | 75.57/75.82 |
| NQ2 | 2.960/2.970 | 75.18/75.44 | 1.990/2.000 | 50.65/50.80 | 2.975/2.985 | 75.57/75.82 |
| NQ3/NQTT | 2.960/2.970 | 75.18/75.44 | 1.770/1.780 | 44.96/45.21 | 2.975/2.985 | 75.57/75.82 |
| NMLC | 2.960/2.970 | 75.00/75.44 | 2.042/2.052 | 51.87/52.12 | 2.975/2.985 | 75.50/75.82 |
| HQ | 3.755/3.770 | 95.38/96.00 | 2.495/2.505 | 63.38/63.63 | 3.775/3.790 | 95.89/96.27 |
| HQ3/HQTT | 3.755/3.770 | 95.38/95.57 | 2.401/2.411 | 60.99/61.24 | 3.775/3.790 | 95.89/96.27 |
| PQ | 4.795/4.815 | 121.80/122.30 | 3.340/3.350 | 84.84/85.09 | 4.820/4.835 | 122.43/122.81 |
| PQ3 | 4.795/4.815 | 121.80/122.30 | 3.265/3.275 | 82.93/83.19 | 4.820/4.835 | 122.43/122.81 |
| T2-76 | 2.987/2.997 | 75.87/76.12 | 2.424/2.434 | 61.56/61.82 | 2.999/3.009 | 76.17/76.42 |
| T2-86 | 3.381/3.391 | 85.87/86.12 | 2.818/2.828 | 71.56/71.82 | 3.393/3.403 | 86.17/86.42 |
| T2-101 | 3.970/3.982 | 100.84/101.14 | 3.290/3.300 | 83.56/84.00 | 3.984/3.994 | 101.19/101.44 |
| T6-101 | 3.970/3.982 | 100.84/101.14 | 3.105/3.115 | 78.88/79.13 | 3.984/3.996 | 101.21/101.51 |
| T6-116 | 4.560/4.575 | 115.80/116.18 | 3.657/3.667 | 92.88/93.13 | 4.575/4.590 | 116.21/116.59 |
| T6-131 | 5.150/5.165 | 130.80/131.18 | 4.247/4.257 | 107.88/108.13 | 5.165/5.180 | 131.21/131.59 |
| T6-146 | 5.740/5.755 | 145.80/146.18 | 4.837/4.847 | 122.88/123.13 | 5.757/5.772 | 146.23/146.61 |
| HMLC | 3.858 | 98 | 2.5 | 63.5 | 3.878 | 98.5 |
